CS42-Classic Series Fuel Dispenser

Quick inquiry
I am interested in . This equipment will be used in (country) . My name is , my Email is , my phone number is . Detailed requirements are . Please send me detailed quotation list!

42logo

CS42-Classic Series Fuel Dispenser

the features of CS42-Classic Series Fuel Dispenser

HIGH SECURITY SECURED    WATERPROOF AND DUSTPROOF

6200 Main Board: Latest Electronic Technology, More Safety and Stability

Intelligent Voice Broadcast System, Printer Bill System, Full-service Customers

Adjustable Display: Brightness can be adjusted according to the light

Pos Smart Upgrade Simply Maintenance

High-precision Flow Meter: Shell use unique technical processing, moistureproof,rustproof, All the advanced design assure outstanding performance no malfunctionswithin 5,000,000 liters, life-cycle can reach 10,000,000 liters and wide temperatureadoption from-40C- 55C

CS42-Classic Series Fuel Dispenser Available Options

International Solenoid Valve

International Brand Nozzleo

Breakaway and Swivel

IC Card Payment Terminal

English Receipt Printer

Stainless Steel Arm Side and Canopy

CS42-Classic Series Fuel Dispenser Technical Parameters:

Accuracy:t0.25%

Flow Rate Range: 5-50L/Min or 8-80L/Min

Intake Vacuum:> 54KPA

Display: sales 0.00 to 9999999

Noise: < 80dB(A)

Volume: 0.00 to 99999.99

Unit Price: 0.00 to 9999 ( Decimal point position can be chosen)

Electrical Totalizer: 0.00 to 99999999.99

Electrical Mechanical Totalizer: 0.00 to 999999

Power Supply: AC380V or AC220V with a changing range from-15% to + 10%

Motor's Output Power: 750W and 1000W

Working Environmental Temperature: -40°C to+55°C

Relative Humidity: 30% to 90%

CS42-Classic Series Fuel Dispenser Congfiguration Table


Pump Type

Nozzle

Oil Product

Display

Flow Rate (L/Min)

6H 3P

Gear Pump

6

3

6

5-50



6H 3P

6

3

2

5-50



6H 3P

Submersible Pump

6

3

6

5-50

8-80


6H 3P

6

3

2

5-50

8-80


Net Size:1220*680*2370mm (L*W*H)

Package Size:1280*740*2480mm (L*W*H)

THE CASES

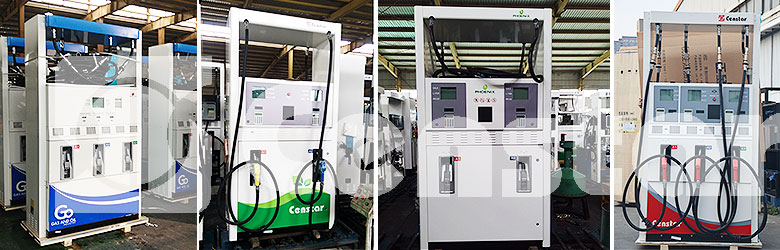

CS42-Classic Series Fuel Dispenser  Single Nozzle Fuel Dispenser In Saudi
