Censtar is One of the best quality CNG equipment manufacturers in China CNG Dispenser is the medium between the gas station and the customer, so safety is the most important performance for the boss of CNG station.

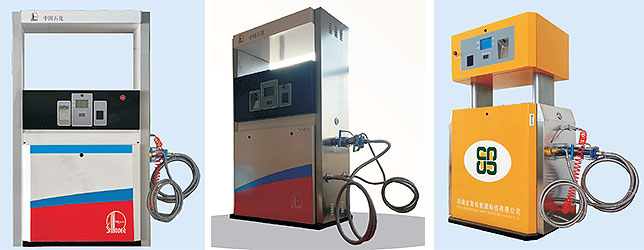

LNG dispenser Main features
1.With the functions of quantitative and non-quantitative
2.Through the national explosion-proof detection， With the machine explosion-proof certification, safe and reliable.
3.Machines can choose with vacuum insulation structure and insulation pipeline structure
4.Extensible IC card and printer.
5.The swappable volume measurement and quality measurement.
6.With break away coupling valve, can provide protection function
7.Have the function of pressure and temperature compensation
8.When power off ，can protect the data and data delay display function
9.Can connect to the management system
10.A key can control the precooling and refilling
LNG dispenser technical parameters
|Suitable medium||LNG||Flow range||0～ 80 kg/min |
0～ 160 kg/min
|Unit of measurement||kg、L、Nm³||Overall power||≤200W|
|The cumulative measurement range||99999999.99kg、L、NNm³||Filling hose||1 inch stainless steel hose 4 m|
|Back to the gas hose||1/2 inch stainless steel hose 4 m||Explosion-proof rating||ExdeibllBT4 Gb|
